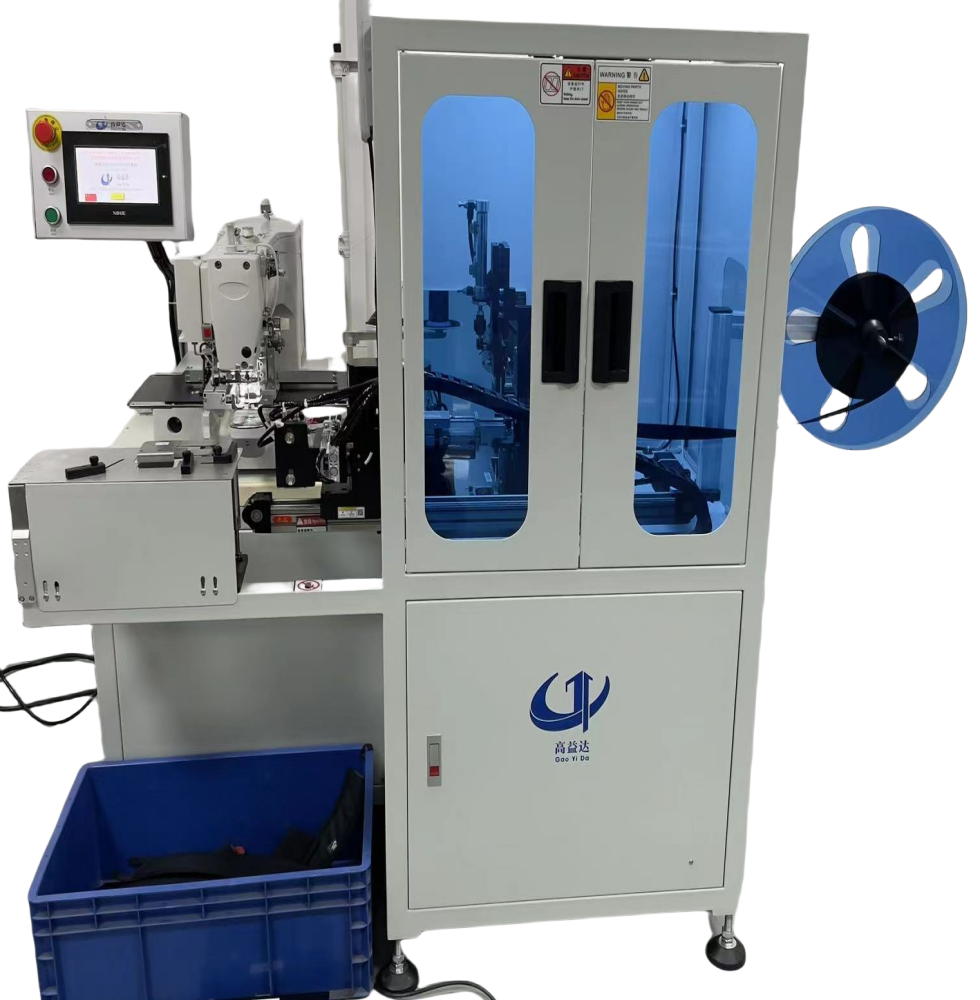

自动超声波肩带穿扣电脑花样机 Automatic ultrasonic shoulder strap wearing buckle computerized pattern machine
自动超声波肩带穿扣电脑花样机
Automatic ultrasonic shoulder strap wearing buckle computerized pattern machine
功能特点 Features
可适用于衣服配料，背包，手袋，鞋类及适合其他特殊用途
It can be used for clothing ingredients, backpacks, handbags, shoes and other special purposes

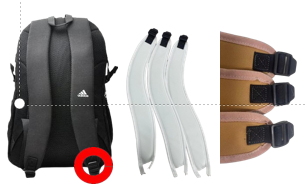

主要用于背包的织带穿扣车缝
It is mainly used for sewing the webbing of backpacks
传统相比较机器缝制出来的产品更加标准美观
Compared to traditional machines, products sewn by machines are more standardized and aesthetically ple
系统设有缺料警报,可预设产品数量,完成产量自动停机
There is a shortage alarm in the system, which can preset the quantity of products and automatically shut down after completing the production
技术参数 Technical Parameters
|
型号model |
JS-CK01-UT |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1200W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
电脑花样机Computers |
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度Working width |
宽度12-30MM长度100-1000MM对折长度10- 50MM Width 12-30MM Length 100-1000MM Folded length 10-50MM |
|
体积 Wolume |
长1600MM*宽750MM*高1450MMength 1600MM th 750MMHe ht 1450MM |
重量Weight |
280KG |
|
产能 Capacity |
长度500MM为例，每分钟产能12-16条 12-16 pieces per minute for 500MM length (as an example) |
||
一人可同时操作多台设备
One person can operate several machines at the same time.
