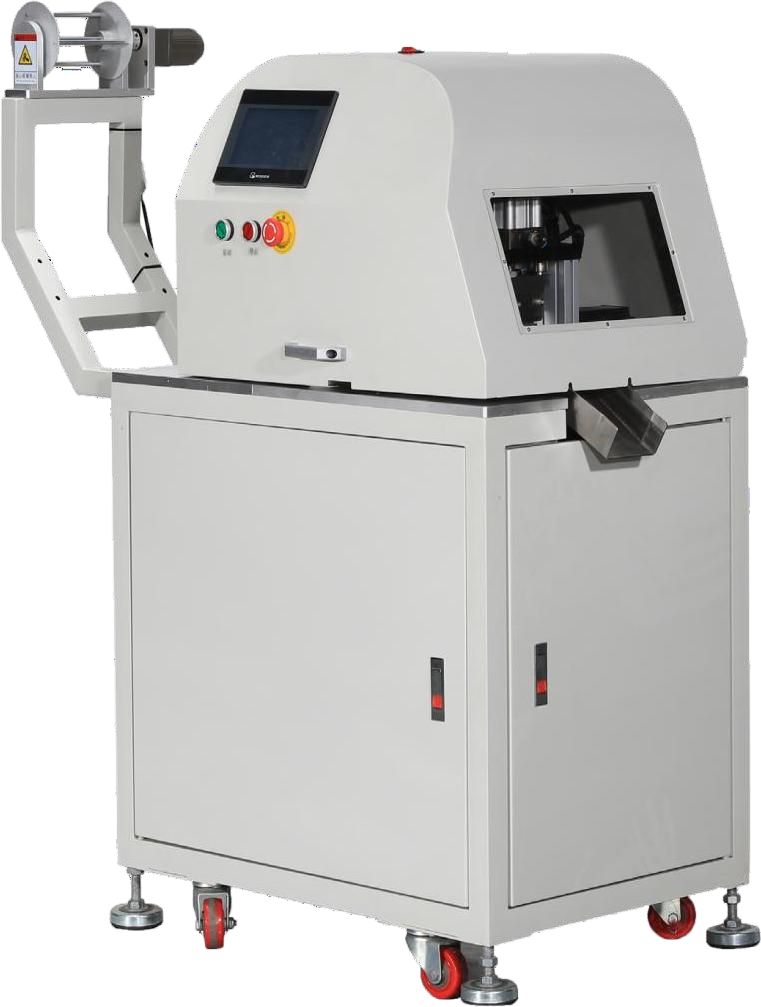

全自动超声波拉链点切机 Full-automatic ultrasonic zipper point cutting
全自动超声波拉链点印切割机
Full-automatic ultrasonic zipper point cutting
功能特点 Features
适用于背包、箱包的拉链点切割
Zippers for backpacks and bags.Point cutting

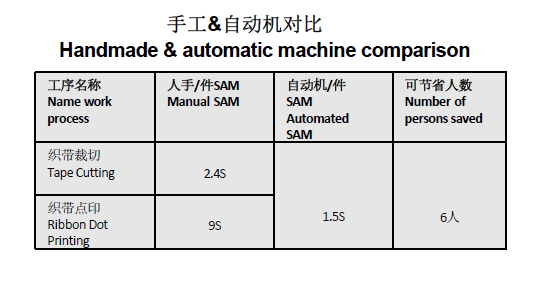

机器两大功能：一：机器自动点（记号）并切断一次完成，可以节约两道工序两个人手，完全替代人手画线，快速精准
Two functions of the machine: First, the machine automatically points (marks) and cuts it off once, which can save two hands in two processes, completely replace hand drawing, and is fast and accurate.
内置可设多段距离尺寸， 并可随意更改，方便控 制； 内置组存储记忆， 方便快捷存储调用节省时间
Built-in multi-distance dimensions can be set, and can be changed at will for easy control; Built-in group storage memory, convenient and quick storage calls save time
机器送料长度可以根据客户需求来定机器标配长度1-10 米
The feeding length of the machine can be determined according to thecustomer's requirements. The standard length of the machine is 1-10m
技术参数 Technical Parameters
|
型号model |
JS- LLDQ- UT2 |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1900W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
|
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度 Working width |
宽度20-50MM长度10-3000MM Width 20-50MM,length 10-3000MM |
|
体积 Wolume |
长1300MM*宽600MM*高1400MMLengt 1300MM'Width 600MM'Height 1400MM |
重量Weight |
148KG |
|
产能 Capacity |
长度50MM为例，拉链每边点9个记号 ,每分钟产能20-50条 For example, 9 marks on each side of the zipper, 20-50 production capacity per minute |
||
一人可同时操作多台设备
One person can operate several machines at the same time
