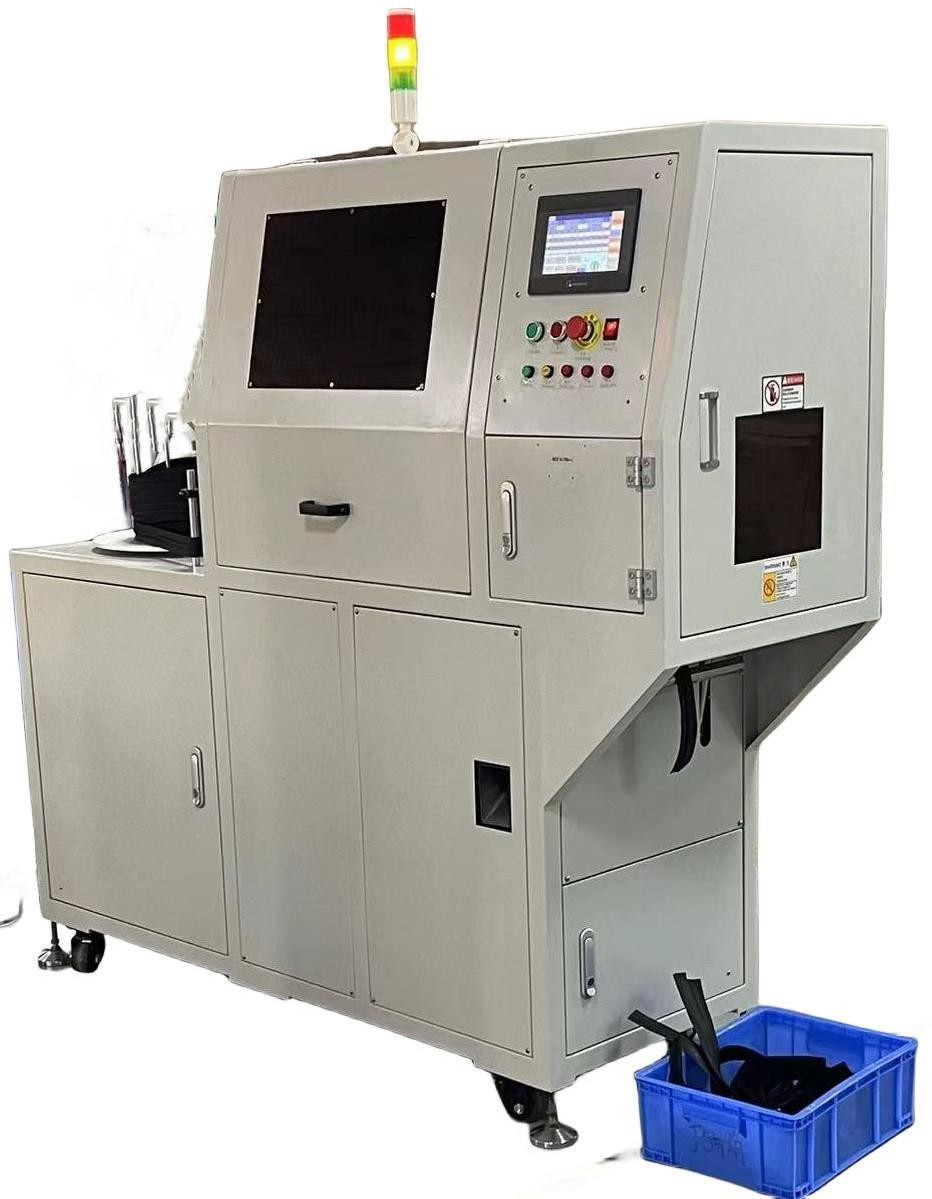

全自动拉链点切捆绑机 Automatic zipper point cutting bundling machine
全自动拉链点印切割捆绑机
Automatic zipper point cutting bundling machine
功能特点 Features
可适用于背包，手袋，箱包,成衣的拉链织带剪 切，点印。按一定的条数量进行捆绑
It can be used for cutting and dot printing of zipper webbing for backpacks, handbags, luggage and garments. Bundle by a certain number of bars.
内置可设多段距离尺寸，并可随意更改，方便控制；内置组存储 记忆，方便快捷存储调用节省时间
Built-in multi-segment distance size can be set, and can be changed at will, easy to control; built-in group storage memory, convenient and quick storage and recall to save time
可按客户的要求设定捆绑数量
The number of bundles can be set according to customer requirements
机器送料长度可以根据客户需求来定机器标配长度 1-10 米
The feeding length of the machine can be determined according to customer needs. The standardlength of the machine is 1-10 meters
设备无需人工收料。自动收料捆绑
The equipment does not require manual material collection. Automatic material collection and
技术参数 Technical Parameters
|
型号model |
JS-LLDQ-UT1/K1 |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1900W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
|
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度 Working width |
宽度20-50MM长度10-1800MM Width 20-50MM,length 10-1800MM |
|
体积 Wolume |
长1900MM*宽500MM*高1700MMLengt 1900MM'Width 500MM'Height 1700MM |
重量Weight |
275KG |
|
产能 Capacity |
长度500MM为例,拉链每边点9个记号，每分钟产能12-17-条 For example, 9 marks on each side of the zipper, 12-17-items per minute |
||

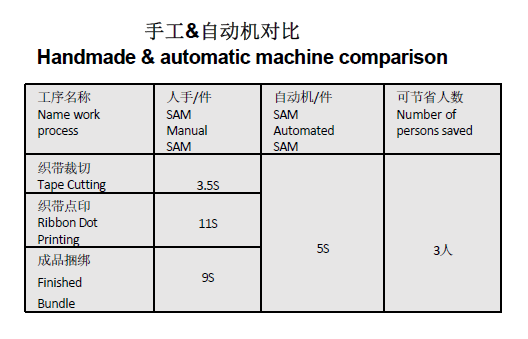

一人可同时操作多台设备
One person can operate several machines at the same time
