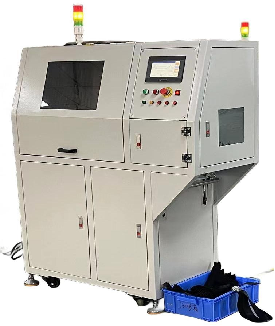

全自动超声波多角度切带捆绑机Auto Ultrasonic Multi-angle Belt Cutting Machine
全自动超声波多角度切带捆绑机
Auto Ultrasonic Multi-angle Belt Cutting Machine
功能特点 Features
可适用于衣服配料，背包，手袋，鞋类及适合其他特殊用途
It can be used for clothing ingredients, backpacks, handbags, shoes and other special purposes
主要用于背包，手袋，运动鞋的多角度织带剪切
Mainly used for multi-angle webbing shearing of backpacks, handbags and sports shoes
采用人机对话方式控制，人性化操作，易学，直角、斜角，全数 据驱动
Adopt man-machine dialogue control, humanized operation, easy to learn, right angle, oblique angle, full data drive
机器采用全自动追频系统，切口平整柔滑，不烧耗织带，无烟环保
The machine adopts automatic frequency tracking system, with smooth incision, no burning of ribbon, no smoke and environmental protection.
功能机器内有多种图形，每种图形单独有多组存储记忆，机器设有无料感应，警报自检，故障自检
There are many kinds of graphics in the functional machine, and each graphic has multiple groups of memory. The machine is equipped with no-material sensing, alarm self- checking and fault self-checking
技术参数 Technical Parameters
|
型号model |
JS-DJD-UT1/K1 |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1600W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
|
|
感切角度 Cutting angle |
斜切0-50度 straightly,beveled by 0-50 dogroos |
作业宽度 Working width |
宽度10-70MM长度10-1800MM Width 10-70MM,length 10-1800MM |
|
体积 Wolume |
长1800MM*宽600MM*高1600MMLengt 1800MM'Width 600MM'Height 1600MM |
重量Weight |
265KG |
|
产能 Capacity |
长度500MM为例，每分钟产能15-20-条 500MM in length as an example, 15-20-items per minute |
||
一人可同时使用多台设备，无需等待，
One person can use multiple devices simultaneously without waiting.
|
工序名称 Name work process |
人手/件SAM Manual SAM |
自动机/件 SAM Automated SAM |
可节省人数 Number of persons saved |
|
织带裁切 Tape Cutting |
3.5S |
3.6S |
2.7人 |
|
成品捆绑 Finished Bundle |
9S |
全自动超声波多角度切带捆绑机生产现场视频Automatic ultrasonic multi-angle belt cutting and binding machine production scene video
