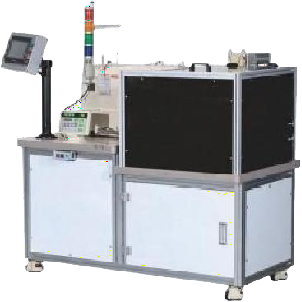

全自动超声波织带折圈套结机Automatic Ultrasonic Ribbon Folding and Knotting Machine
全自动超声波织带折圈套结机
Automatic Ultrasonic Ribbon Folding and Knotting Machine
功能特点 Features
机器适用于衣服配料，背包，手装，鞋类及适合其他特殊用途，
handbags,shoes and other special purpases,
与传统相比较机器缝制出来的产品更加标准美观
Compared with the traditional machine sewing out of the product is more standardized beauty
全白动化作业，无需人手操作，自动作业流程，自动送 带，自动对折，白动缝制。
Full white motion operation, no need for manual operation, automatic workflow, automatic belt feeding, automatic folding, white motion sewing
超声波自动切断，切口柔软，美观不刮手，不起胶，不散
Ultrasonic automatic cut off, the incision is soft, beautiful, non-scratch, non-glue, not scattered
超声波自动切断，切口柔软，美观不刮手，不起胶，不散口，噪音小，环保无烟雾
Ultrasonic automatic cutting, soft cutting, beautiful, non- scratch, non-glue, no loose mouth, low noise, environmental protection, no smoke
技术参数 Technical Parameters
|
型号model |
JS- TJJ/ ZQ 01 - LQ |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1200W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
打枣车Bartack machine |
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度 Working width |
宽度10-30MM长座30-200MM对折长度15- 100MM Wian 10-30MM,length 20- 200MM.Icinglengh 15-100MM |
|
体积 Wolume |
长1400MM*宽1100MM*1300MMength 1400MM th 1100MM He ht 1300MM |
重量Weight |
220KG |
|
产能 Capacity |
长度30MM为例，每分钟产能14-17条 14-17 pieces per minute far 30MM length (as an example) |
||
手工&自动机对比 Handmade & automatic machine comparison
|
工序名称 Name work process |
人手/件SAM Manual SAM |
自动机/件 SAM Automated SAM |
可节省人数 Number of persons saved |
|
织带裁切 Tape Cutting |
3S |
3.5S |
3.5人 |
|
手折车缝 hand-folded seam |
12S |
