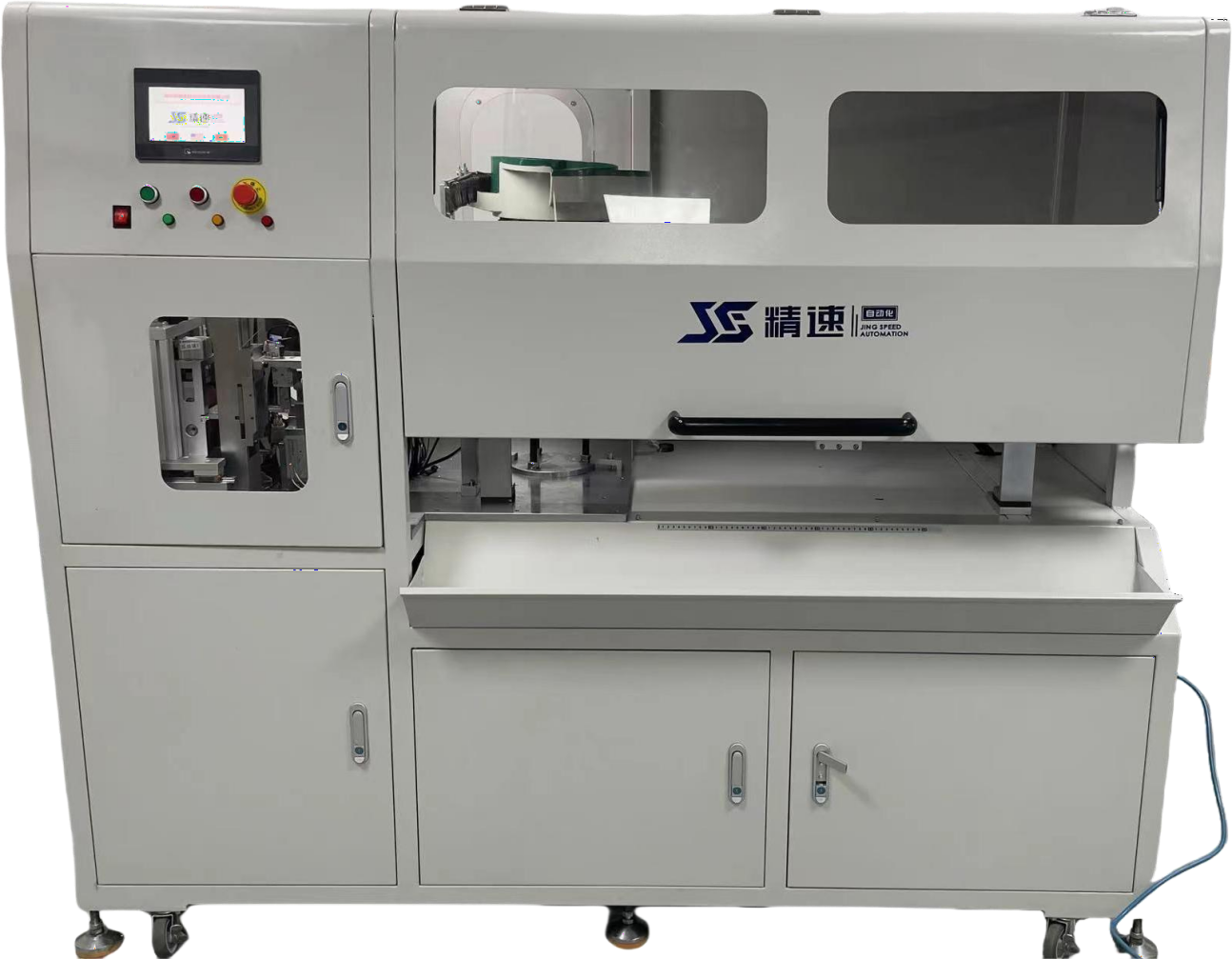

全自动超声波拉链点印穿拉头裁切机Full-automatic ultrasonic zipper dot printing through slider cutting machine
全自动超声波拉链点印穿拉头裁切机
Full-automatic ultrasonic zipper dot printing through slider cutting machine
功能特点 Features
可适用于，箱包，背包，高尔夫球袋、帐篷，服装
Can be used for bags, backpacks, golf bags, tents, clothing
主要用于箱包，背包，高尔夫球袋、帐篷的拉链点印切断及穿拉头
Mainly used in bags, backpacks, golf bags, tents, zipper dot printing and cutting and wearing slider.
本机自动点印拉链,穿拉头,切拉链为一体的自动化设备，可在触摸屏设定拉链长度及多种参数， 拉头通过振动盘自动送料，通过穿头机构进行自动穿头。可实现自动化生产
This machine is an automatic machine which is integrated with automatic zipper printing, zipper threading and zipper cutting, the zipper length and various parameters can be set in the touch screen, the zipper is fed automatically by the vibrating plate, and the zipper is threaded automatically by the threading mechanism. Automatic production can be realized.
一人可同时操作多台设备
One person can operate several machines at the same time
技术参数 Technical Parameters
|
型号model |
JS-CL/DY-0802 |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
2000W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
|
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度 Working width |
长度150-1500MM length150- 1500MM |
|
体积 Wolume |
长2774MM*宽879MM*高 1680MM,ength 12774MM th 879MM He ht 1680MM |
重量Weight |
260KG |
|
产能 Capacity |
,长度500mm每分钟产能15-20件 Length 500mm Capacity 400-500 pcs per minute
|
||
一人可同时操作多台设备
One person can operate multiple devices simultaneously
手工&自动机对比
Handmade & automatic machine comparison
|
工序名称 Name work process |
人手/件SAM Manual SAM |
自动机/件 SAM Automated SAM |
可节省人数 Number of persons saved |
|
人工涂抹胶 |
|
|
|
|
水 |
34S |
|
|
|
Manual glue |
|
|
|
|
application |
|
20S |
2.7人 |
|
|
|
||
|
手工折边 |
20S |
|
|
|
Hand Folded |
|
|
|
|
Edges |
|
|
|
