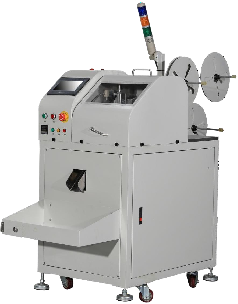

全自动超声波折圈粘合机Automatic ultrasonic folding ring bonding machine
全自动超声波折圈粘合机
Automatic ultrasonic folding ring bonding machine
功能特点 Features
鞋舌前端商标中位与侧边织带折圈
Logo center front of tongue with side webbing folding loops
鞋后根挂位织带折圈
Ribbon folding at the back of the shoe
可调至长短，宽窄，速度快克靠性高，容易操作
Adjustable length, width, speed, reliability and easy operation
用先进自动追频声波系统，一次同时做三条，效率快，品质好
Adopt advanced automatic frequency-chasing sound wave system, and do three at a time, with high efficiency and good quality.
针对化纤及尼龙弹性带，切口柔软顺滑
For chemical fiber and nylon elastic belt, the incision is soft and smooth
机器内存多种生产功能
Multiple production functions of machine memory
技术参数 Technical Parameters
|
型号model |
JS-ZQ02-UT |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1000W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
|
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度 Working width |
宽度3-15MM长度20-100MM对折长度22MM Wian 3-15MM,length 20-100MM.Icinglengh 22MM |
|
体积 Wolume |
长1600MM*宽600MM*高1200MMength 1600MM th 600MM He ht 1200MM |
重量Weight |
146KG |
|
产能 Capacity |
长度50MM为例，每分钟产能40-50条 40-50 pieces per minute far 50MM length (as an example) |
||
一人可同时操作多台设备
One person can operate multiple devices simultaneously
手工&自动机对比
Handmade & automatic machine comparison
|
工序名称 Name work process |
人手/件SAM Manual SAM |
自动机/件 SAM Automated SAM |
可节省人数 Number of persons saved |
|
织带裁切 Tape Cutting |
1.4S |
3.S |
3人 |
|
织带折边 Tape Folding |
5S |
