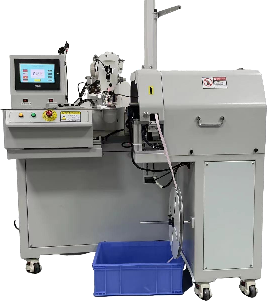

全自动超声波鞋舌织带折缝机Auto Utrasonic Tongue Ribbon Crimper
全自动超声波鞋舌织带折缝机
Auto Utrasonic Tongue Ribbon Crimper
功能特点 Features
主要用于运动鞋类的鞋舌织带折缝
One-sided crease of dark threa
暗线单边折缝明线双边折缝
Mainly used for folding the tongue webbing of sports shoes .Open-wire bilateral folding seam
具有自动送料，自动折边，自动车缝明线与暗线的功能，一人可 以单独操作两台产能翻倍
It has the functions of automatic feeding, automatic folding, automatic sewing of open thread and hidden thread, and one person can operate two sets independently to double the production capacity.
采用超声波熔切的方法对织带进行裁切，环保无污染且切口平顺 不散口，具有自动收料功能，能降低操作员的工作强度
Adopt ultrasonic melting cutting method to cut the webbing, which is environment-friendly and pollution-free, and the incision is smooth and not loose. It has automatic material receiving function, which can reduce the operator's work inten
功能机器内有多组存储记忆，机器设有无料感应，警报自检，故 障自检
There are multiple groups of storage memories in the functional machine, and the machine is equipped with no-material sensing, alarm self-checking and fault self- checking
技术参数 Technical Parameters
|
型号model |
JS-TJJ/XSZF-UT |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1800W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
电脑花样机Computers |
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽座 Working width |
宽度8-15MM长度100MM对折长度20-40MM Wian 8-15MM,length 100MM.Icinglengh 20- 40MM |
|
体积 Wolume |
长1300MM*宽1200MM*1000MM,ength 1300MM th 1200M He ht 1000MM |
重量Weight |
230KG |
|
产能 Capacity |
长度30MM为例， 一人同时操作两台每分钟产能14-16片 14-16pieces per minute for two machines as being operated by one operator for 30MM length (as an example) |
||
一人可同时操作2台设备
One person can operate 2 devices simultaneously
手工&自动机对比
Handmade & automatic machine comparison
|
工序名称 Name work process |
人手/件SAM Manual SAM |
自动机/件 SAM Automated SAM |
可节省人数 Number of persons saved |
|
织带裁切 Tape Cutting |
1.4S |
5S |
3人 |
|
织带折边 Tape Folding |
12S |
