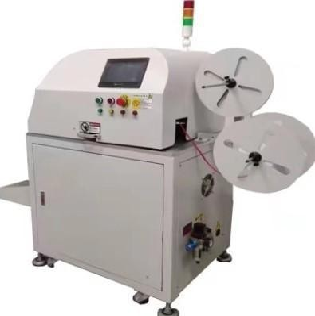

全自动超声波双折边切焊机Automatic Ultrasonic Double Folding Cutting and Welding
全自动超声波双折边切焊机
Automatic Ultrasonic Double Folding Cutting and Welding
功能特点 Features
可适用于衣服配料，背包，手袋，鞋类及适合其他特殊用途
It can be used for clothing ingredients, backpacks, handbags, shoes and other special purposes
织带的单折边切焊，双折边切焊
Single fold cutting and welding of webbing, double fold cutting and welding of webbing
可调长短，宽窄，速度快可靠性高，容易操作
Adjustable length, width, fast speed, high reliability, and easy operation
针对化纤及尼龙弹性带，切口柔软顺滑
For chemical fiber and nylon elastic bands, the incision is soft and smoot
用先进自动追频超声波系统，一次同时做两条，效率快，品质好
With the advanced automatic ultrasonic system, it is possible to make two products at the same time, with high efficiency and good quality
技术参数 Technical Parameters
|
型号model |
JS- 2 ZQ- 02 A 4 - UT |
电压Welta |
AC220V |
|
气压Alr pressure |
0.5-0.6 MPa |
裁切方式 Cutting |
自动遍频超声波系统 Auto frequency tracing ultrasonic system |
|
功率Power |
1000W |
系统System |
可编程系统Programmable system |
|
驱动Drive |
伺服闭环系统Programmable system |
缝制Sewing |
|
|
感切角度 Cutting angle |
直裁 cut straight |
作业宽度 Working width |
宽度6-15MM对折长度12-25MM Width 6-15MM Folded length 12-25MM |
|
体积 Wolume |
长1000MM*宽600MM*高1600,ength 1000MM th 600MM He ht 1600MM |
重量Weight |
136KG |
|
产能 Capacity |
长度25 MM为例， 两条同时每分钟产能18- 20条 18-20 pieces per minute for25MM length (as an example) |
||
一人可同时操作多台设备
One person can operate multiple devices simultaneously
手工&自动机对比
Handmade & automatic machine comparison
|
工序名称 Name work process |
人手/件SAM Manual SAM |
自动机/件 SAM Automated SAM |
可节省人数 Number of persons saved |
|
织带裁切 Tape Cutting |
1.4S |
3.5S |
3.8人 |
|
织带折边 Tape Folding |
12S |
