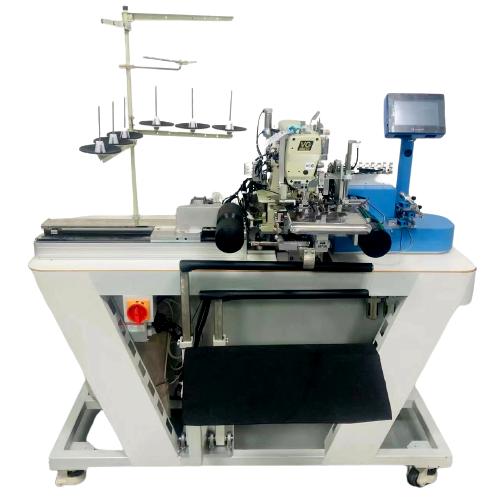

全自动下摆绷缝机

Automatic hemstitching machine

适用于针织 T 恤衫筒状下脚边的绷缝
For sewing knitted T-shirts with a cylindrical foot hem.
自动尺寸控制
Automatic size control
采用全新的倒骨装置，侧缝骨位倒向同一方向Adoption of the new inverted bone
device, lateral suture bone position inverted to the same direction
缝纫机的同步采用点对点控制系统
Synchronisation of sewing machines with point-to-point control systems
左轮的扩张采用力对力控制
Revolver expansion using force-on-force control
一人可同时操作2台设备
One person can operate 2 machines at the same time

技术参数 TECHNICAL PARAMETERS
机头型号 sewing head model /
电压 Voltage/ 功率 power
PEGASUS:W3662P-35B / 220V / 1100W
气压 Air Pressure / 耗气量 gas
consumption
6KG 230L/min
尺寸范围 Size Range
可操作直径38~82cm,脚边宽1.3~3.5cm
Stretchable diameter range available 38~82cm, Hem Width
长*宽*高 1.3~3.5cm
Length*Width*Height 120*61*141 CM

产能效率(每小时)
Production Capacity(per hour300-350pcs

全自动车缝T恤下摆无需人手自动生产，效率高，

Fully automatic sewing T-shirt hem does not require manual automatic production, high efficiency,
